Introduction
In the vast field of geotechnical engineering, understanding soil behavior is essential. Soils form the very foundation of buildings, roads, bridges, and other infrastructure. If a foundation fails, the structure above it can collapse—sometimes with devastating consequences. Among the many tools geotechnical engineers use to analyze and understand soil properties, Atterberg limits are some of the most vital. These limits, though deceptively simple, provide key insights into how soil behaves under varying moisture conditions.
Understanding Soil Behavior in Engineering
Soil is not just dirt. It’s a complex mixture of minerals, water, air, and organic matter. Unlike concrete or steel, it changes properties with moisture content. It can swell, shrink, become soft, or stiffen depending on how wet or dry it is. These changes directly affect its strength and stability. That’s why predicting soil performance is so important in design and construction—and this is exactly where Atterberg limits come into play. They offer a scientific way to classify soil based on its moisture sensitivity, which helps engineers avoid failures before they happen.
The Origins of Atterberg Limits
The concept of Atterberg limits was introduced by Swedish scientist Albert Atterberg in the early 20th century. Atterberg developed these limits to describe the critical water contents at which fine-grained soils change their physical state. While his original work was rooted in agricultural science, it was later adapted and expanded by engineers and researchers, especially Karl Terzaghi—the father of soil mechanics. Today, Atterberg limits are a standard element in any geotechnical investigation involving cohesive soils.
What Are the Atterberg Limits?
Atterberg limits define the boundaries between different states of consistency in fine-grained soils, depending on their moisture content. These include the liquid limit (LL), the plastic limit (PL), and the shrinkage limit (SL). Each of these thresholds marks a change in soil behavior—from a liquid-like state to a plastic one, and finally to a solid, brittle state.

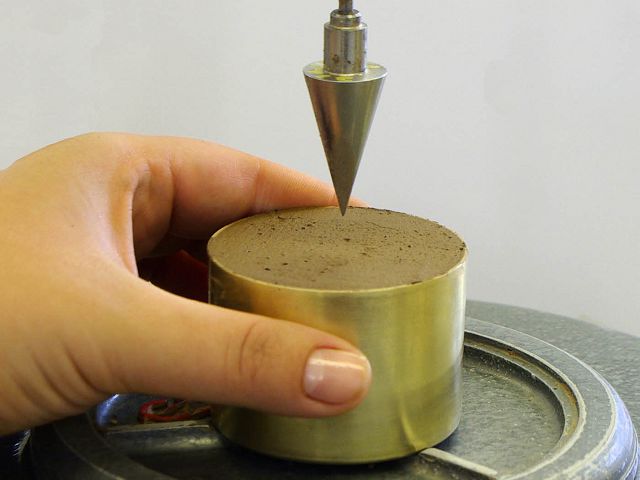

To measure these limits, soil samples are subjected to a series of lab tests. For example, the liquid limit is found by measuring the water content at which the soil begins to flow under its own weight, while the plastic limit is determined by rolling the soil into threads until it begins to crumble. These might seem like basic procedures, but they unlock critical information about how the soil will perform in real-world conditions.
Why Atterberg Limits Matter in Geotechnical Engineering
Atterberg limits are not just academic tools—they’re vital for real-world applications. They help engineers understand how a soil will behave when it gets wet or dry. This understanding affects nearly every decision in construction, from selecting suitable foundation types to choosing the right method for earthwork compaction. Without this knowledge, structures could suffer from excessive settlement, heaving, or even collapse due to unforeseen soil movement.
Role in Soil Classification Systems
Geotechnical engineers use standardized classification systems to group soils based on their physical properties. Atterberg limits play a central role in these systems, especially for fine-grained soils like clays and silts. For example, the Unified Soil Classification System (USCS) and the AASHTO system rely heavily on Atterberg limits to determine whether a soil is clayey or silty, and whether it is of low or high plasticity.
By comparing the plasticity index (which is the difference between the liquid and plastic limits) with grain size distribution, engineers can accurately classify a soil and make informed design choices. A clay with a high plasticity index, for example, may expand and contract dramatically with moisture changes, making it a risky choice for certain types of construction unless proper mitigation steps are taken.
Relationship with Soil Strength and Stability
The strength of soil is largely influenced by its water content. When soil contains too much water, it can become unstable and lose its shear strength, especially in clayey materials. Atterberg limits help identify the range within which a soil remains strong enough to support a structure. If the in-situ water content is near or above the liquid limit, the soil may behave almost like a viscous fluid, posing severe stability risks.
Moreover, understanding the plastic and shrinkage limits helps engineers estimate how much a soil might shrink or crack as it dries. These behaviors are crucial for designing stable foundations, retaining walls, and embankments.
Use in Construction Planning and Design
During the planning phase of a construction project, engineers use Atterberg limit data to anticipate challenges and choose suitable construction methods. Soils with high plasticity might need to be stabilized before they can support any load. The choice of foundation type—whether shallow, deep, or pile-supported—often depends on how the soil transitions across these limits.
Atterberg limits also help determine whether soil needs to be replaced or treated before construction begins. Engineers might use lime or cement stabilization to alter the soil’s properties, bringing it within acceptable ranges for workability and strength.
Impacts on Foundation Performance
A poor foundation can cause cracking, shifting, or even total failure of a structure. Atterberg limits provide early warnings about potential issues with expansive soils, which swell when wet and shrink when dry. These cycles can cause uneven support under a building, leading to long-term damage.
If soil near the plastic limit experiences moisture changes due to poor drainage or climate, the foundation above it may experience differential settlement. Understanding the limits allows engineers to design foundations that can tolerate these shifts—or to prevent them through appropriate soil treatment and drainage solutions.
Importance in Earthwork and Compaction
Earthwork is one of the most critical steps in site development, involving excavation, transportation, and compaction of soil. Soil must be compacted at the right moisture content to achieve optimal density and strength. Atterberg limits guide this process by identifying the safe moisture range in which the soil remains workable yet stable.
If a soil is too wet (near or above the liquid limit), it won’t compact properly and could lead to weak subgrades or embankments. If it’s too dry (below the plastic limit), it may become brittle and prone to cracking. Therefore, understanding these boundaries ensures better quality control during construction.
How Climate and Water Content Affect Atterberg Limits
Though Atterberg limits themselves are constants for a given soil, they interact closely with environmental conditions. In regions with heavy rainfall or seasonal wet-dry cycles, soils may frequently move between states. This fluctuation can lead to ground movement, affecting roadways, utility lines, and buildings.
Climate change, which can intensify rainfall patterns or extend droughts, may cause soils to move across their Atterberg thresholds more often, increasing the need for resilient designs based on precise geotechnical data.
Laboratory Testing and Accuracy
Reliable measurement of Atterberg limits requires standardized lab procedures. The Casagrande cup method and the thread-rolling method are among the most widely used. Precision in these tests is critical, as even slight deviations can lead to misclassification and design errors.
To ensure accuracy, labs must carefully prepare soil samples, maintain environmental controls, and follow ASTM standards like D4318. Automation and digital tools are increasingly used to reduce human error and provide more consistent results.
Challenges and Limitations of Atterberg Limits
While Atterberg limits are incredibly useful, they are not perfect. One key limitation is that they primarily apply to fine-grained soils. Sands and gravels don’t exhibit the same moisture sensitivity, so Atterberg limits are of limited use in those contexts.
Additionally, soils with mixed grain sizes or variable mineral content may produce inconsistent results. Organic soils or those with unusual compositions may not conform well to standard testing. Despite these limitations, Atterberg limits remain a foundational tool in the geotechnical engineer’s toolkit.
Case Examples in Real-World Projects
In many infrastructure projects—such as highway embankments, airport runways, or large-scale housing developments—Atterberg limit tests are among the first evaluations performed during site investigations. In one notable project involving a high-speed rail line in a tropical region, engineers discovered that the native clay had a liquid limit above 70%, indicating high plasticity and potential for swelling.
Based on these findings, they chose to use deep foundation systems with soil stabilization layers to prevent long-term issues. In another case involving a dam construction, the Atterberg limits helped identify the need for extensive drainage systems to control seepage through clay cores.
These examples show that Atterberg limits are not just academic—they guide decisions that can save lives and prevent massive financial loss.
Certified Material Testing Products (Certified MTP) is a leading supplier of construction materials testing equipment and laboratory supplies in the United States. They offer a comprehensive range of products for testing concrete, asphalt, aggregate, soil, and cement, catering to both field and laboratory applications But no matter whether they are prefered or not, the whole idea behind these tools is similar: getting a polished, shiny, and permanent effect. New to stucco or a seasoned pro, investing in good tools and learning the nuances of their use is what will get you started perfecting your craft.
Final Thoughts
Atterberg limits may seem like simple lab measurements, but their significance in geotechnical engineering is profound. They form the bridge between laboratory testing and real-world soil behavior, allowing engineers to predict and manage how soils will react to moisture changes.
From soil classification to foundation design and construction quality control, Atterberg limits touch nearly every phase of a civil engineering project. Their proper use helps ensure stability, safety, and longevity in the built environment.
Though they have limitations, when combined with other soil tests and expert interpretation, Atterberg limits provide a powerful lens through which engineers can understand and manage the complexities of earth materials. As geotechnical challenges grow with urban expansion and climate shifts, these fundamental principles remain more nfc business card relevant than ever.
